Mine Dry

A mine dry is a facility at a work site where workers prepare for and clean up after a shift – typically including showers, toilets, and changing areas. It is more than a locker or shower room, it contributes to worksite health, safety and efficiency.

Key Features of a Mine Dry

  • Shower facilities: Allowing staff to remove dust and grime from their work clothes.

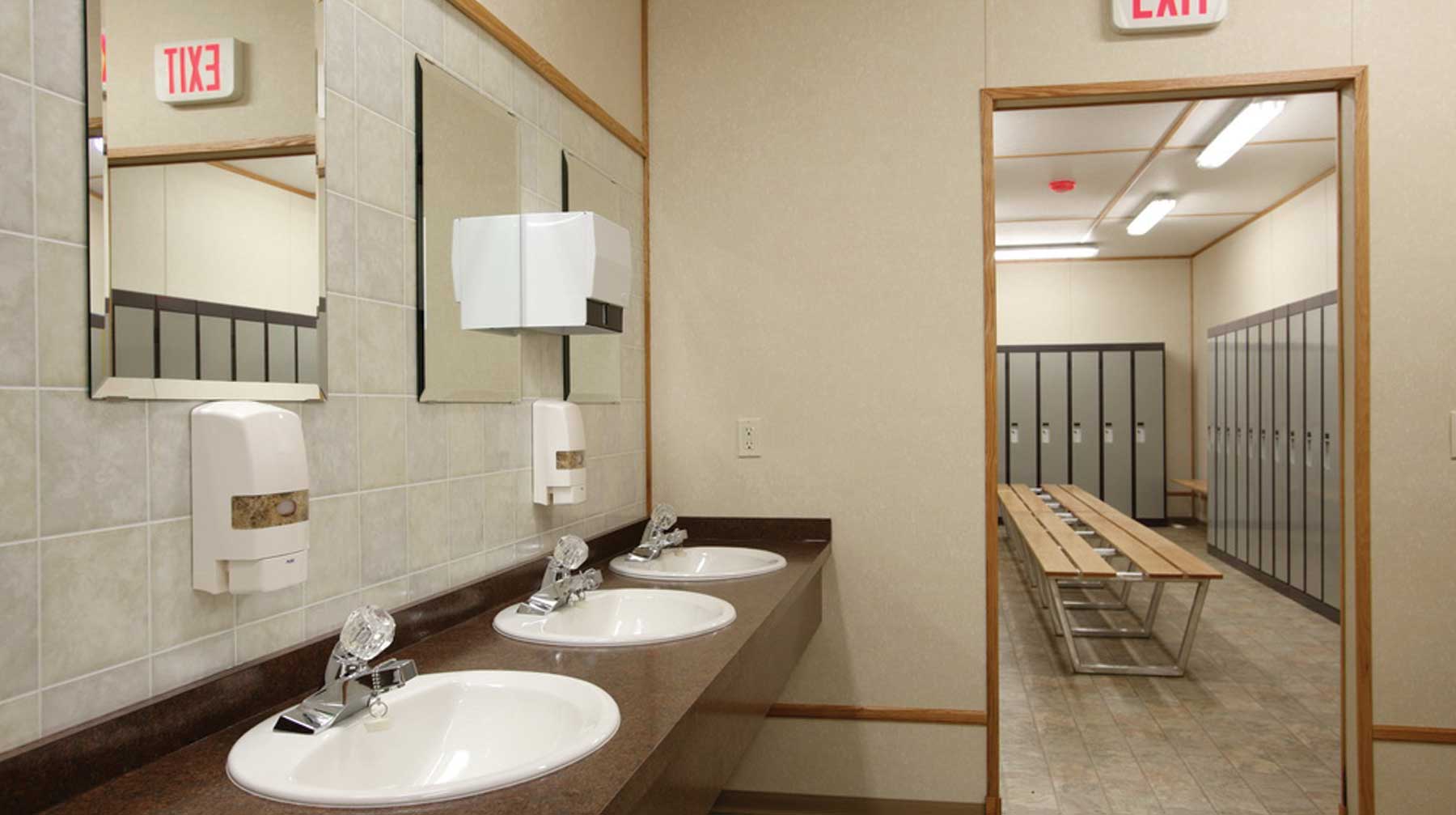

  • Restroom facilities: Providing access to toilets and sinks.
  • Changing rooms: Areas for staff to change into and out of their work clothes and personal protective equipment (PPE).

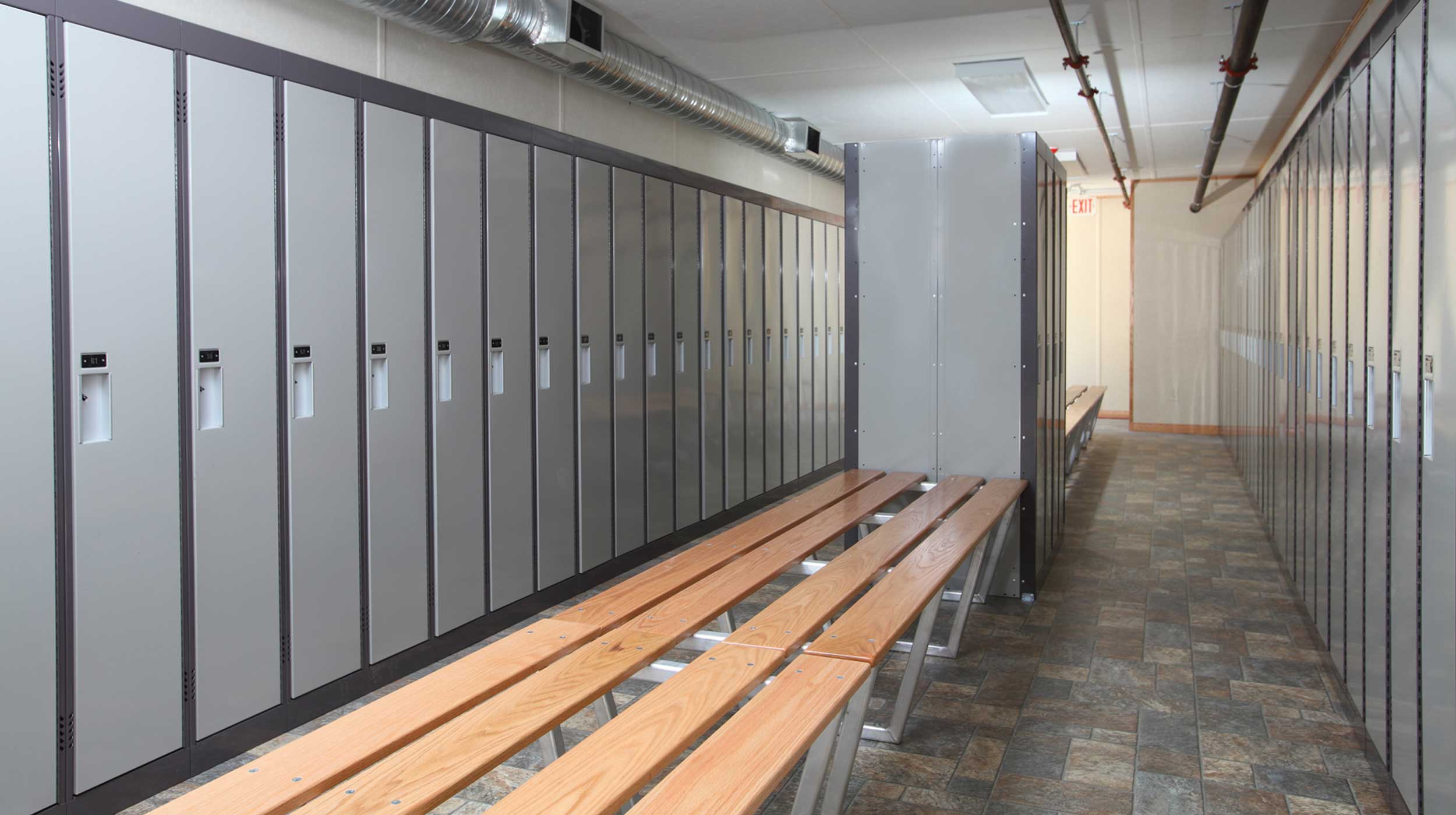

  • Locker rooms: Storing personal belongings and work equipment.
  • Laundry facilities: Commercial-grade laundry equipment for cleaning work clothes.
MODEL Mine Dry
Length 48′ to 60′
Width 12′
Construction Wood-frame modular structure with metal siding
Number of Units Ranges from 2-Box to 6-Box Complex
Certifications Alberta Part 10, CSA A277, BCCSA COR, ISO-9001:2008, WCB
Exterior Walls 2×6 @ 16″ o.c. – R20 Insulation
Interior Walls 2×4 – insulated for sound dampening as required
Floor 2×10 @ 16″ o.c. – R20 and R40 Insulation
Roof 2×10 @ 16″ o.c. – R40 Insulation – select 5/8″ T&G Sheathing
Ext/Int Colours Customized to client preference
Skid Triple – 35 LB
HVAC Customized to client preference

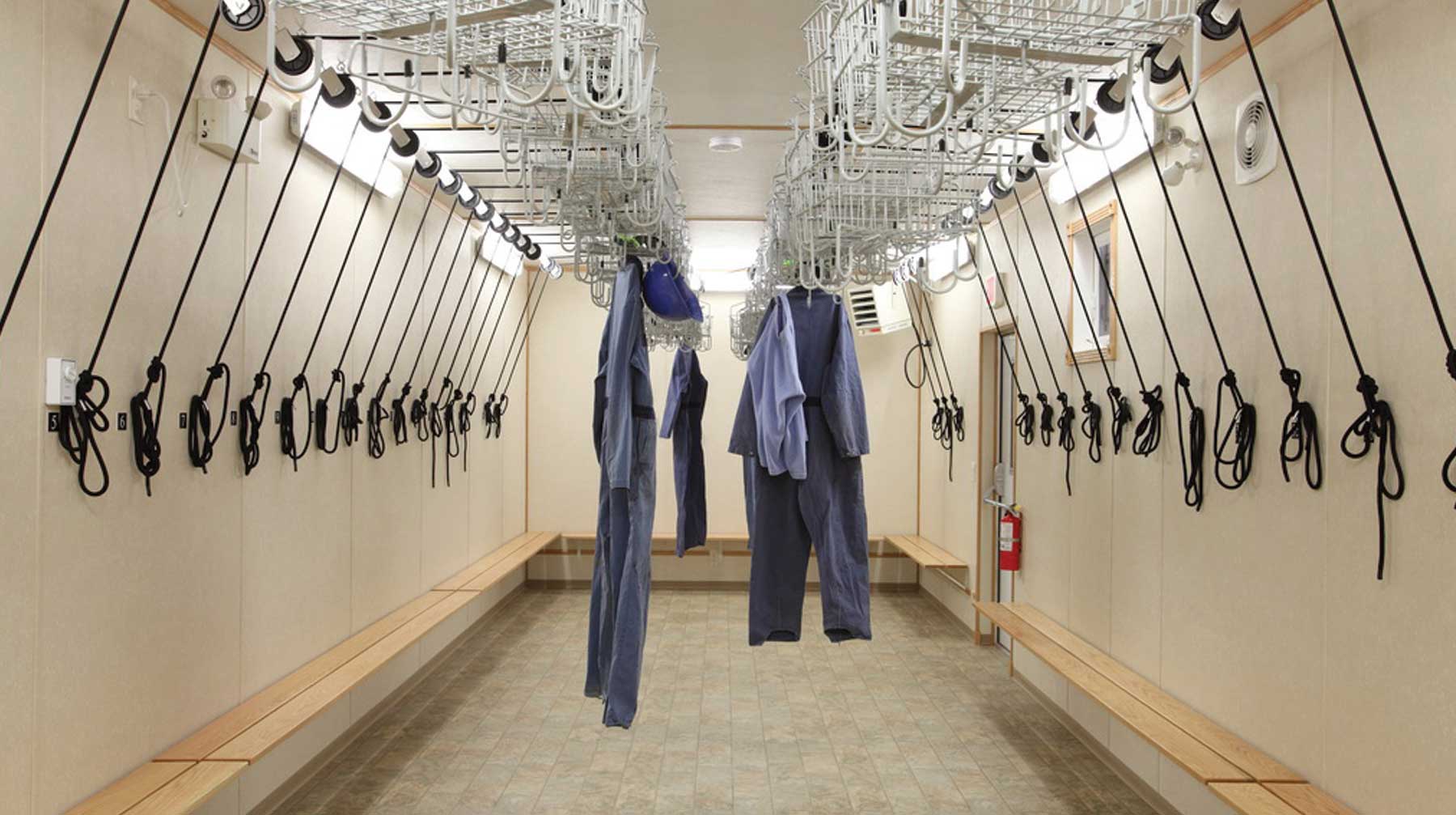

Dry Room Basket and benches to suit
Change Room Lockers and benches to suit
Restrooms 2 with shower and gang shower area
Office Space In-house millwork custom to suit
Kitchen/ Dining Optional
Appliances / Electronics Leading Brands

Mine Dry Floorplans

Our floorplans are not absolute, but a guide to help you envision your own custom modular workforce solution.

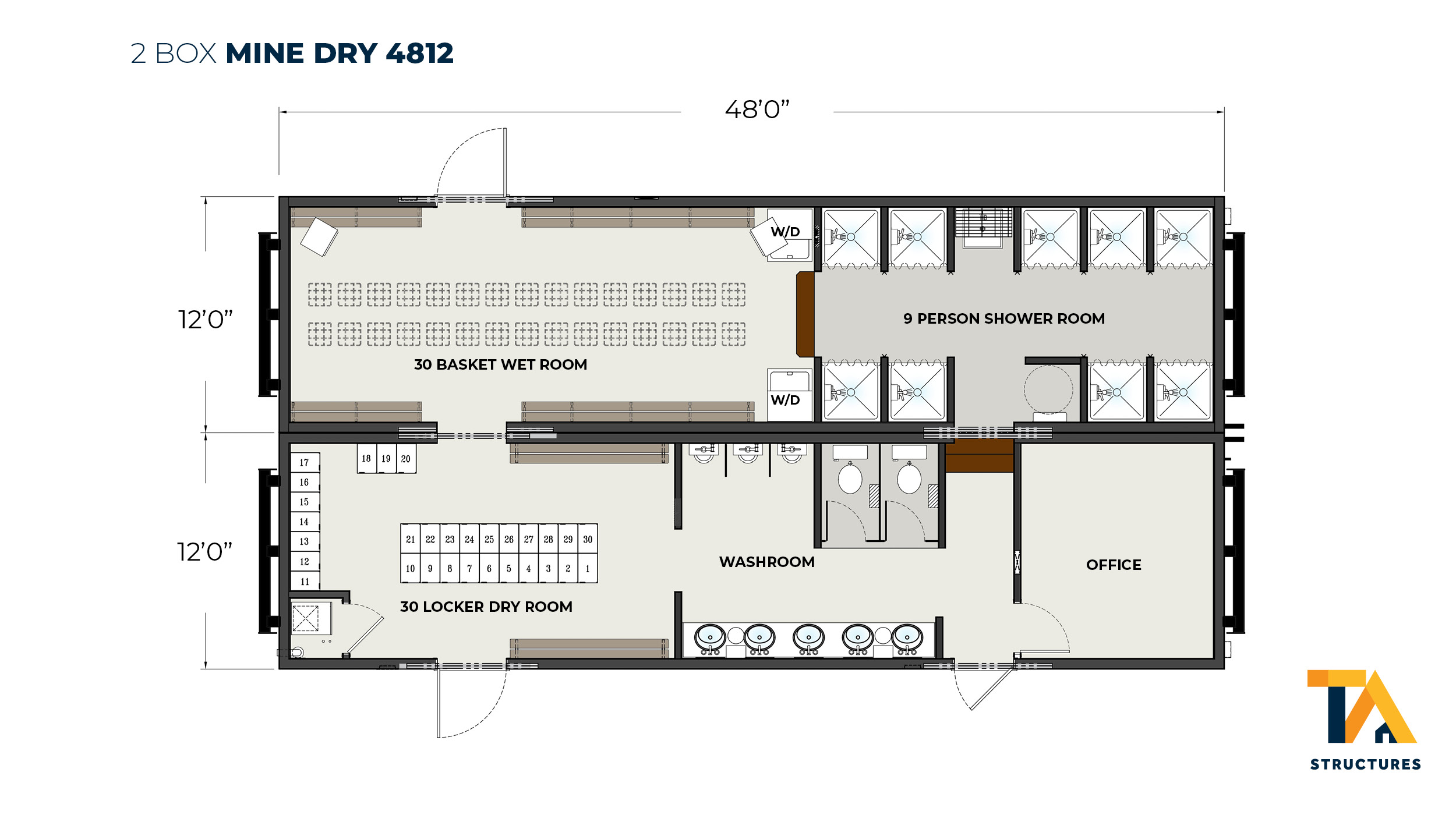

2 Box Mine Dry 4812 Floorplan

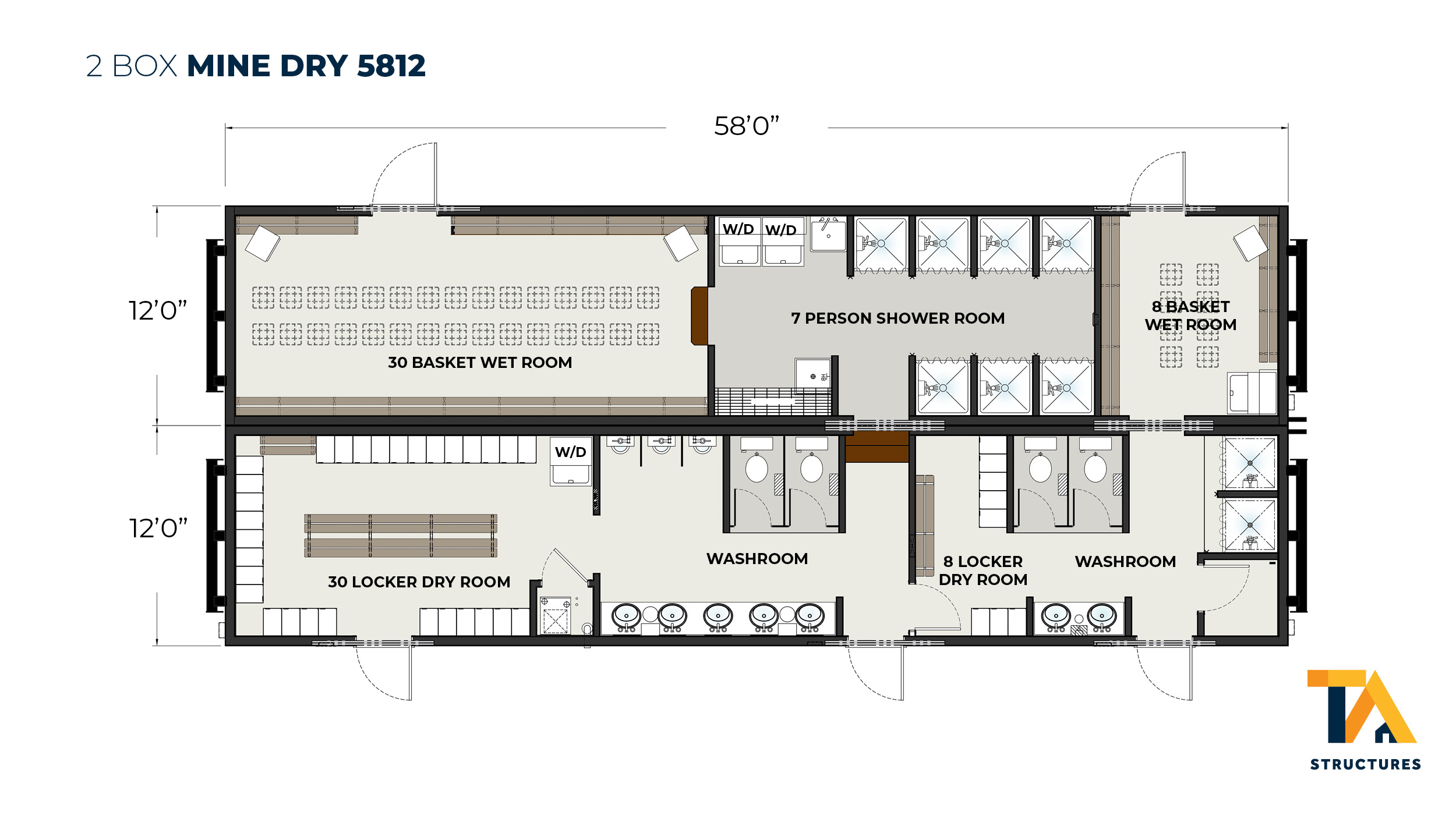

2 Box Mine Dry 5812 Floorplan

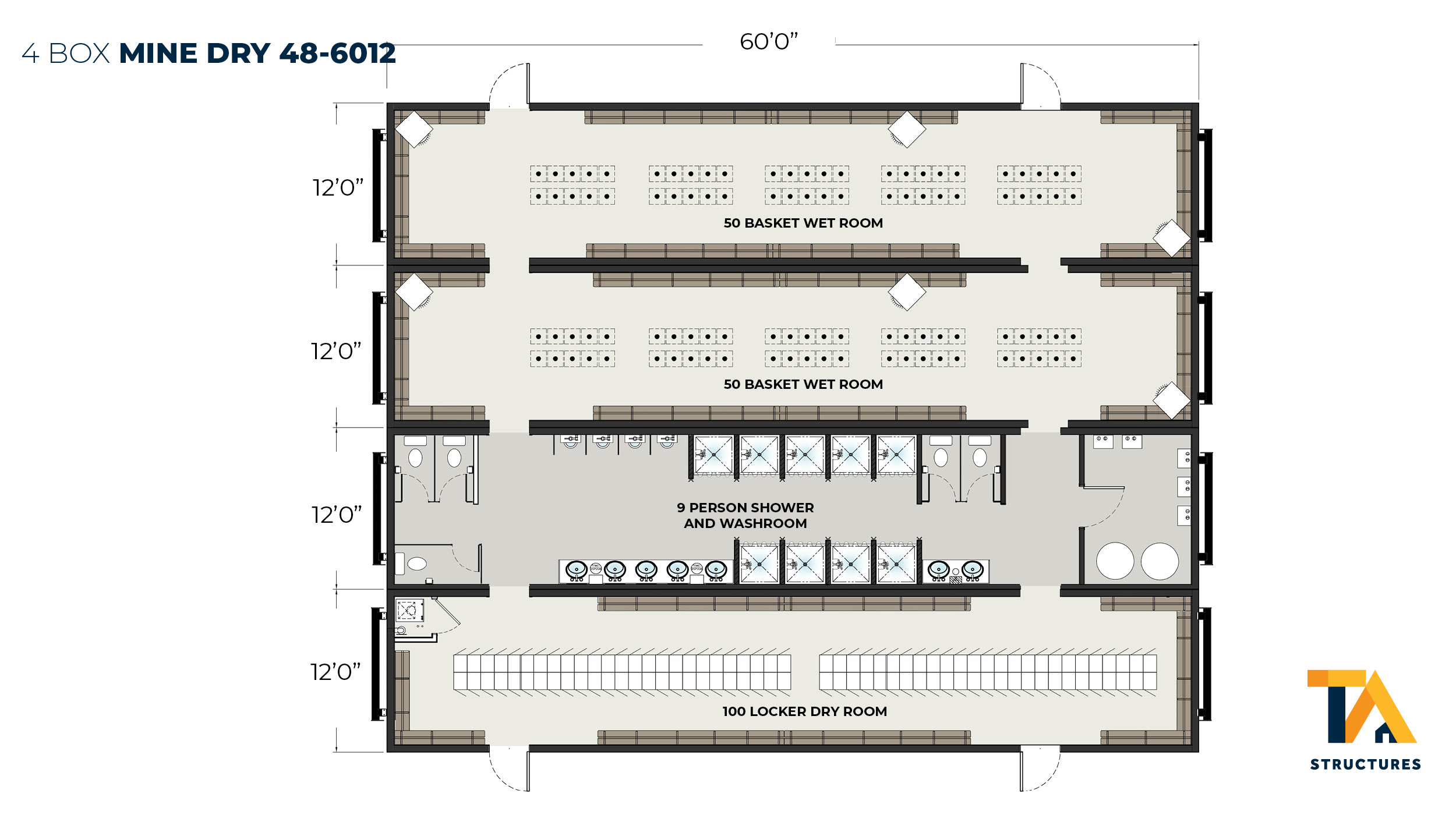

4 Box Mine Dry 48-6012 Floorplan
